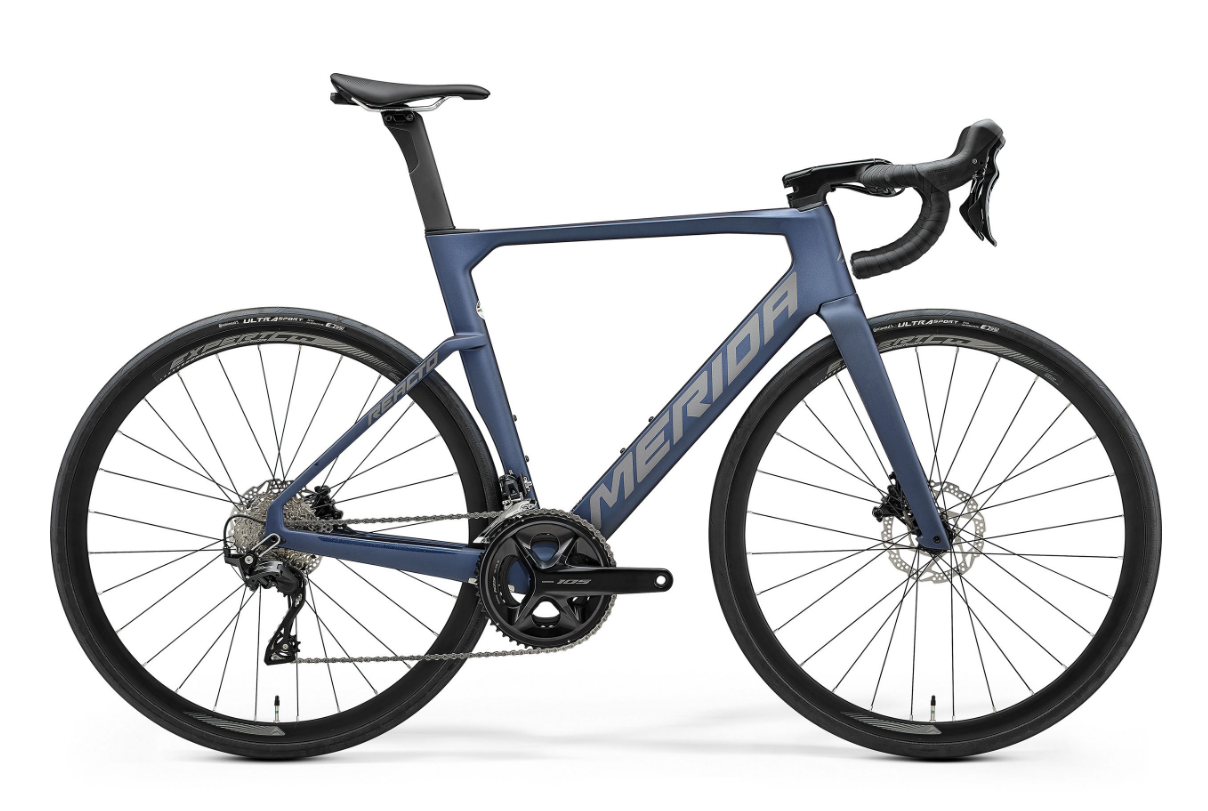

אופני AERO קרבון MERIDA REACTO 4000

frame REACTO CF3 IV

• material: carbon
• 700x30C max. wheelsize
• 100x12/ 142x12mm axle standard
• BB86,5 bottom bracket standard

frame size 3XS, XXS, XS, S, M, L, XL

color MATT MOUNTAIN BLUE (BLACK)

fork REACTO CF3 IV DISC

• material: carbon
• 700x30C max. wheelsize

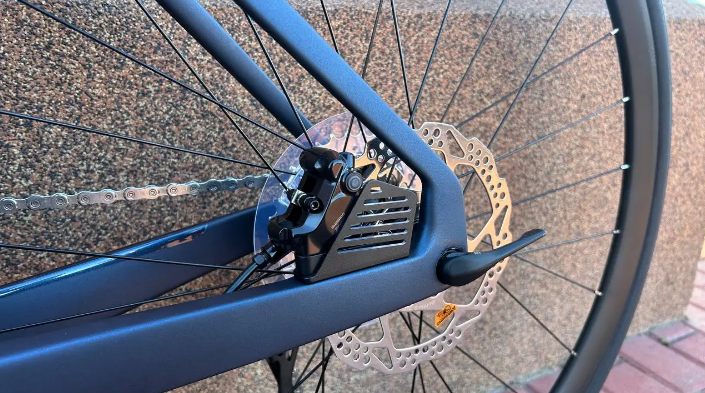

brakes Shimano 105

• Hydraulic disc

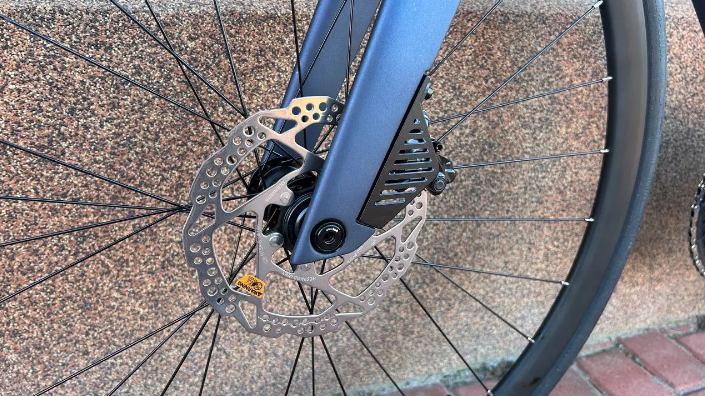

rotors Shimano RT54

• 160mm

brake lever Shimano 105

headset MERIDA TEAM SL

• VP-MRBHB (OP203 neck)

handlebar MERIDA EXPERT CW

• material: aluminium
• 380mm (XXS-XS-S)
• 400mm (M-L-XL)

handlebar stem MERIDA EXPERT SL 2PII

• material: aluminium
• -9° stem angle
• 90 mm-XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

grip MERIDA ROAD Expert

derailleur (f) Shimano 105

derailleur (r) Shimano 105

• GS

shifters Shimano 105 disc

seat post MERIDA TEAM CW

• Aero shape
• 15mm setback
• Carbon

seat clamp MERIDA REACTO Aero

saddle MERIDA EXPERT SL

• 6% recycled and 23% nature material
• V-mount
• incl. MERIDA minitool

chain Shimano M6100-12

crank Shimano 105

• 52-36 teeth
• 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

freewheel Shimano 105 R7101

• 11-34 teeth
• 12 speed

bottom bracket Shimano SM-BB72-41B

• Pressfit 86.5

hubs Shimano HB-TC500 / Shimano HB-TC500-HL

• 100x12mm width front hub
• 28 spoke holes
• Centerlock
• 12-142mm width rear hub
• 28 spoke holes
• Centerlock

rim MERIDA EXPERT CW

• 19mm inner width
• 30mm height
• material: aluminium
• Tubeless ready (tubeless tape and valves not included)

tyre front Continental Ultra Sport III

• 700x28C
• fold

tyre rear Continental Ultra Sport III

• 700x28C
• fold

axles MERIDA EXPERT SL

• including removable lever
• 6/4mm allen key

spokes Double Butted Black stainless

approx. weight 9 kg

• weighed at frame size M
• Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

max. weight 120 kg
